The past two years have witnessed flurry of action and hype around Software Defined Networking. There are umpteen numbers of vendors claiming to churn out SDN solutions and products every other week. This paper provides a perspective on the technology, SDN industry, role of system integrators in this space, and how SI can adapt and evolve to facilitate the SDN adoption journey of customers.
Introduction: Traditional Network that we Know
Network by design has been a distributed computing environment. Each node in the network, be it a switch or a router, has both intelligence (control plane) and muscle (forwarding or data plane). Packet forwarding was done on a hop-by-hop basis with each node making forwarding decisions on its own. Configuration of these network devices was being done box by box. Troubleshooting was even more complex - with packet traces, hop-by-hop checks and required deep expertise in product architecture most of the time. Managing networks includes a mundane set of activities like backup, repeated configuration tasks, fulfillment of requests and keeping the lights on.
Most network products were proprietary and built with Application Specific Integrated Circuits (ASICs) that are tightly coupled to the operating system on top of it. It is fair to say that these were ‘black boxes’ with very limited openness either in software or hardware. Proprietary network management software from the respective product vendors was needed to manage this complex infrastructure. Thus, traditional network architectures were a vertically integrated stack of proprietary closed systems. More diversity in network infrastructure would mean more people with specialized skills, more management systems and more processes to orchestrate changes across the stacks.
What is the Problem with the Network?
With the advent of virtualization technologies the server compute block has become agile and provisioning in the Data Center is largely automated. However, the same is not true for network and associated services. Today application or workload provisioning in the DC is time consuming due to the network not being agile. Network provisioning might take several days to weeks in the DC. Most enterprise DC’s have significant product diversity in the network services layer – DNS, Load-balancing, WAN optimization, VPN and firewalling, to name a few. The deployment of these
services demand expert skills, change requests, maintenance windows and sometimes manual rollback of failed provisioning. Network operations have become complex with the need to maintain, manage and upgrade heterogeneous infrastructure. Availability of skilled personnel to oversee successful network operations is becoming a daunting task for DC network managers. And to top it all, the network is always blamed for performance issues or any other infra wide problems in the DC. Network operations are challenged frequently to prove otherwise.
SDN – The Change Agent
Network Virtualization techniques are not something new in the network world. VLANs, tunneling, and VPNs have been around for quite long. Talking about SDN, it intends to centralize all intelligence (control planes) in the network on a software layer allowing centralized control and abstraction of the underlying complex infrastructure. Theoretically, all network nodes would only need the muscle (forwarding or data plane) to push packets out.
Figure1 shows SDN architecture with abstractions and SDN controller providing single layer of management.
Benefits of SDN
Automation of Network Provisioning- Network orchestrators can do this without SDN too. But very few mature and niche products are around.
Integration with Public Cloud- Network provisioning can be done today from a cloud portal without getting into manual device centric configuration mode as earlier.
Abstraction of Infrastructure- Complexity of network infrastructure i.e., vendor specific interfaces, commands, software features are made available to upper layers (like cloud platform or stand-alone orchestrators) as abstracted GUI drop-downs.
Service Chaining and Automation-Seamless insertion and configuration of network services on the fly in an elastic fashion on-demand.
Holistic Enterprise Management- SDN allows management of physical and virtual network devices from a central controller.
More Granular Security- SDN, if effectively used, can manage security throughout the enterprise (mix of physical and virtual environment).
Low Operational Costs- Routine network administration tasks can be centralized & automated resulting into lower operational costs.
Low Capital Expenditure Costs- Use of less expensive hardware “white box” switches with intelligence centered at SDN controller.Guaranteed Content Delivery-SDN’s ability to shape and control data traffic results in enforcing quality of service (QOS) inthe network fabric delivering guarantees on performance for applications.
Vendor Neutrality- SDN, if implemented using open standards, can help in reducing vendor lock-ins.
How does the SDN Controller Achieve This?
As shown in Figure1, there are two distinct interfaces in the SDN controller the southbound interface that talks to the infrastructure layer and the northbound interface that speaks to cloud, orchestration and management layer. The northbound interface is pretty much standardized as REST API’s (Representational State Transfer - Application Programming Interface) in all the SDN controllers that are available today. The southbound interface is specific to the vendor’s implementation. Some use open standards based protocols like OpenFlow, BGP, Netconf etc., while others use proprietary interfaces.
Approaches to SDN

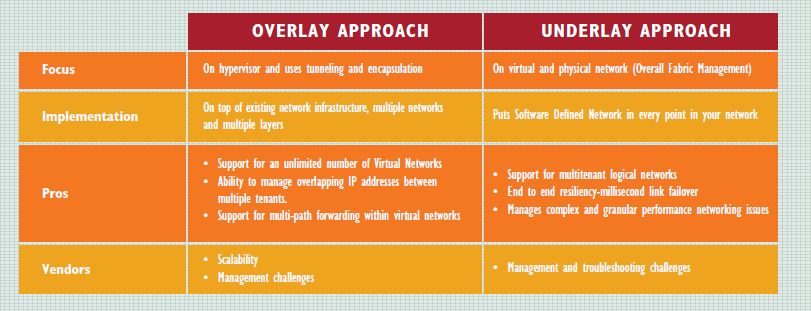

There are two primary approaches that vendors are taking to implement SDN architecture overlay and underlay (fabric based) while there is one more called Hybrid approach which is a combination of both overlay and underlay. Hybrid approach helps in end-to-end visibility and control.
Network Function Virtualization
SDN, NFV and OpenFlow are often used together in field of today’s networking solutions creating confusions among end users. They are all complementary approaches. They each offer a new way to design, deploy and manage the network and its services.
NFV in particular, is concerned with the transition of networks from collections of proprietary boxes to collections of software components running on industry-standard hardware.
Buying and implementation of hardware which used to take months earlier now can be done in hours because of their transition into software forms. Almost any network function can be virtualized.
1.Software Defined Networking
2.Open Innovation
3.Network Functions Virtualization
NFV focus in market includes:
Virtual Switching – physical ports are connected to virtual ports on virtual servers with virtual routers using virtualized IPsec and SSL VPN gateways.
Virtualized Network Services – traffic analysis, network monitoring tools, load balancers and accelerators.
Virtualized Applications – almost any network management related application you can imagine.
While choosing the right NFV or SDN solution, it is important you know various pros and cons of solution offered and see what its your environment.
NFV Advantages
NFV Challenges
Key Criteria in Selecting NFV Challenges Components and Solutions
SDN Use Cases
While the use of SDN in Data Centers receives the majority of attention but its use in WAN and campus networks is also being getting analyzed and implemented. Most of the use cases are generalized and can be used in each environment. Below are some general use cases:
DataCenter
Virtual machine migration, White Box switches, L4-L7 services optimization, security services, load balancer services
WAN WAN
Virtualization, Network Analytics, Centralization, Bandwidth Allocation, Google G-Scale WAN
Campus
Dynamic QOS and Traffic Engineering, Unified Wireless and Wired Networks, Role Based Access
Is SDN Technology Perfect?
Though SDN offers a lot of features there are few concerns over its adoption. Let us see the challenges ahead:
SDN Challenges
Its New-Because of this infancy, many believe SDN implementations are not ready for prime time.
Integration-SDN offers capability to have Southbound integration with any vendor hardware and to integrate Northbound with any monitoring, orchestration and cloud solutions, but Integration is challenging and requires skills and knowledge on various vendors’ solutions and how to integrate with existing environment.
Different Interpretations-SDN has been interpreted by each vendor differently, hence there is need to carefully look at vendors’ future SDN roadmap,architectural principals before finalizing any solution
Security-SDN removes physical layers from the network design and virtualizes it, then replaces it with exposed layer of highly sensitive network layer, open for attack.
Management-Management challenges in defining the scope of control given to SDN controller
SDN Vendor Ecosystem
Network ISVs are taking a three pronged approaches while offering SDN products:
Figure 2 SDN Vendors across SDN Architecture

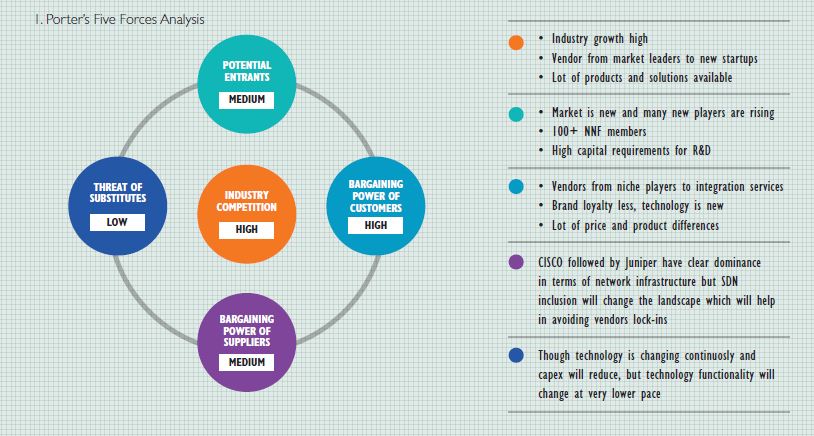

1. Porter’s Five Forces Analysis
2. SWOT Analysis
Strengths:
Weakness:
Opportunities:
Threats:
Though the SDN industry has lot of scope to grow, given lot of players and functionalities it offers, it has led to adoption challenges
Key Concerns of End Users and Buyers of SDN
System Integrator: Filling the Gaps
Given the wide ecosystem of SDN Vendors and SDN’s adoption challenges, there is a requirement of service providers who have the right skill set to analyze the customer environment, offer best solution for customers apt to their environment needs, assist in integration and provide end to end services.

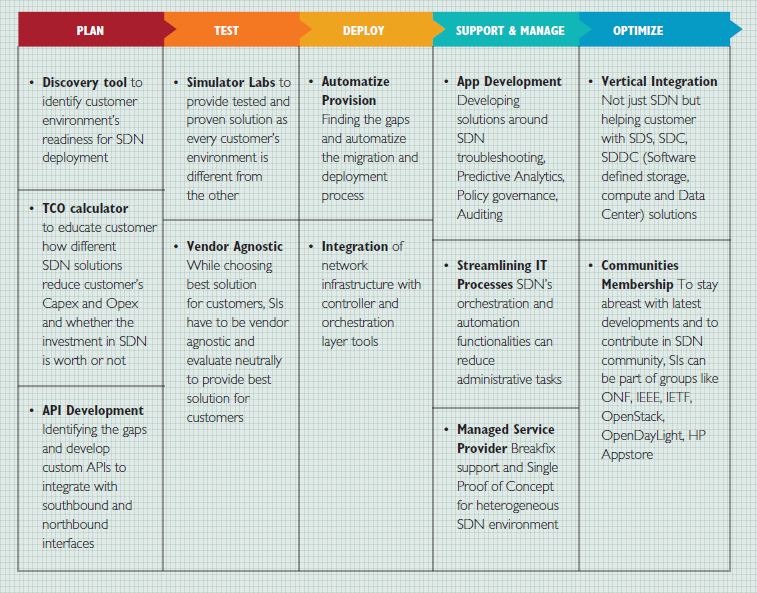

To make sure that System Integrators do not create an additional level of complexity in SDN environment, they need to evolve and adapt themselves to facilitate and ease the SDN adoption journey of customers. Let us see how they can do in each stage of service delivery and can do overall value addition:
Consulting & Assessment
Customize App Development
Testing & Validation
Integration & Migration

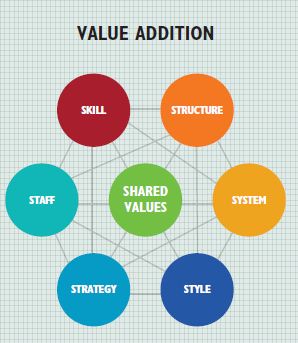

What System Integrator does?
Manage Service Provider
Summary
SDN is a new and disruptive technology in the networking domain. There are a number of vendors announcing SDN solutions and products every other week. Given it’s new and still evolving, it has led to adoption challenges for end customers. And to leverage SDN’s benefits and integrate it in present environment requires great level of skills, knowledge of different vendors; the kind of solutions and level of abstraction offered.
System Integrators who have past experience in integrating traditional solutions, desired skill set for SDN, partnership with multiple vendors can help plug the gaps, and provide customers a complete comprehensive and a vendor agnostic solution and support. To make sure that System Integrators do not create an additional level of complexity in SDN environment, they need to evolve and adapt themselves to facilitate and ease the SDN adoption journey of customers through automation, tools and robust migration methodology.
System Integrators can create value for their customers by identifying the white spaces in service delivery process involving planning, testing, deploying, support & management and optimization stage. System Integrators are rightly placed to act as consultant and hand hold customer through this very exciting SDN adoption journey.
Amit Puri is leading ‘Change the Business’ portfolio that includes software defined Infrastructure and open source initiatives globally. Amit is a business leader with varied experience ranging from strategy, sales, presales, IT operations and delivery, large project management and P&L management. He has been instrumental in launching and running new practices successfully in Wipro including telecom network services, open Source and software defined infrastructure. Amit is passionate about new technologies and making them deliver the promise as clients adopt them.
Manjari Sharma has been a part of the Global 100 Intern program at Wipro and is currently enrolled in the Post Graduate Program in Management at Indian Institute of Management, Calcutta. Before starting out on her management journey, she worked for five and a half years in infrastructure management services at IT majors such as Infosys and Wipro. Her experience is primarily in computing and Network platform. She has a keen interest in Technology and Marketing.
Ramesh Padmanabhan has over 17 years of experience in Telecom and Enterprise IT services encompassing Network Operations, System Integration, Support services, Service Delivery, Network Architecture and Technical Pre-sales. He is currently part of System Integration & Maintenance Services - Global Infrastructure Services in Wipro responsible for network practice development,competency and delivery enablement. Ramesh has wide ranging interests in networking, Openstack and data center technologies. He is currently developing SDN solutions relevant to Wipro's Enterprise customers with specific focus on Open Networking
