API economy at present revolves around API hosting and management. The pre-requisite for API management, obviously, is to have APIs (Application Programming Interface) on the existing/new systems within the businesses. It is imperative to arrive at a methodology for designing, developing or extracting; and exposing such APIs around existing legacy systems. Extraction of APIs (API-fication) can be direct: a completely new application or platform leverages the legacy application for supplying to the APIs; and indirect: the legacy application hosts the API within itself.

How to qualify legacy activities

A legacy application is functionality-oriented, it does not necessarily have an API system around it. The most challenging activity to get APIs out of it is qualification of the functions, starting with categorization of activities:

• Routing: The logic that routes messages from one subsystem to another based on rules (e.g.: workflows)

• Decorative: Attach additional metadata and data elements to the primary message (e.g.: authentication tokens)

• Consumables: Marshalling data elements in their entirety (e.g.: product catalog)

• Helpers: Protocol translations, format conversions, data migrations, context attachment services and token systems

• Projectors: Amplifying and delegating activities such as message multiplications and routing to different orchestrated receivers, hub and spoke activities

• Validations: Message validations, business validations against a database, etc

• Interim IO: CRUD (create, read, update, delete) operations on datastore


The categorization needs definitions of complexity levels that are useful in downstream activities of estimations, scheduling and implementation of APIs.

How to rank legacy activities

Upon identification of the functions (activities), the next logical step is to rank them using specific parameters. Since the API ecosystem is pivotal for developers, these rankings orient towards developer benefits:

• Financial impact of the underlying activity for developers

• Financial impact of the underlying activity for the business that hosts the APIs

• Impact by creating direct or indirect APIs

• Helper impact

• Performance and scaling impact

• Maintenance impact

• Living but near-death status of the activity for developers to consider for future upgrade

• Technology reusability impact of the implementation of activity

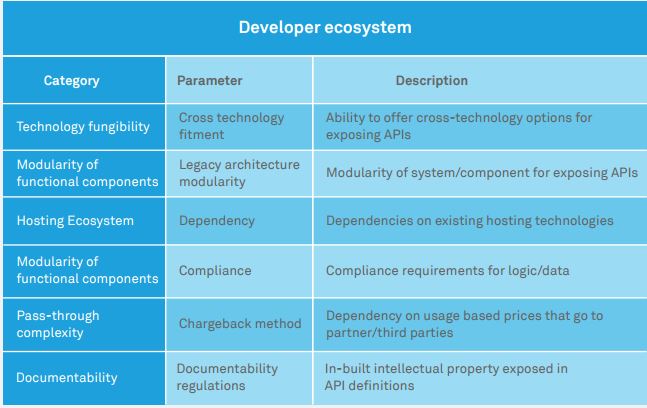

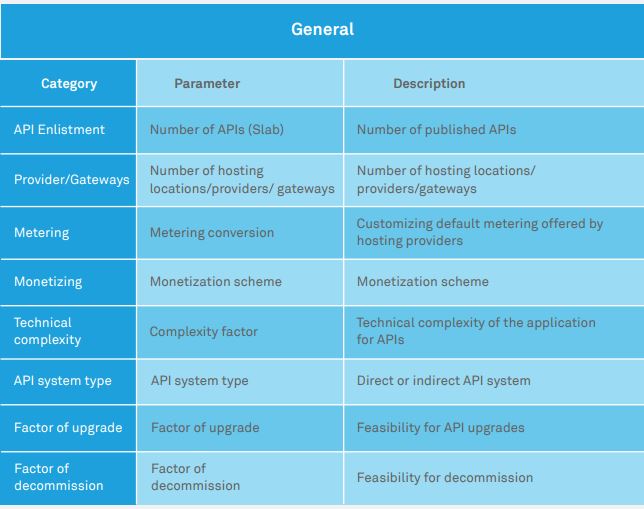

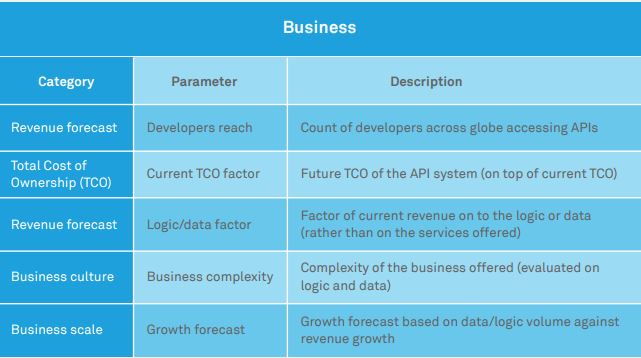

By design, this ranking mechanism has ‘financial viability’ as the key consideration, to address ‘alternate revenue streams’. The manifestation of financial viability are API-fication scoring models (See figure 1, 2 & 3). The modeller is customizable.

Peeling the layers of legacy software

Peeling legacy applications based on architecture tiers offer potential methods for APIs.

• Architectural layers and tiers

• Data blocks irrespective of layer or tier

• Reusable code blocks for hosting separately

• Transactions

• Injectable and partial activities

• Based on refactoring and associated qualifications


The API-fication Scoring Model would contain parameters to evaluate these methods for optimum design and efforts.

Decorating APIs

When conceiving APIs, additional parameters of design and extraction (Decorators) qualify the APIs and deal with scalability and ability to document – apart from standards such as Swagger. The main decorators are:

• Content: Data and meta-data related to API elements

• Security: Identity and security context

• Instrumentation: Monitored behavior of APIs and monetization

• Scale fabrics: Cloud native and adapted APIs and configurations

• Gateways: Access pathways for published APIs

• Documentation publishing: In-built documentation protocols

• Lifecycle management: Managing genesis, creation, upgrade and decommission


Decorators enhance API consumption, enterprise management and usage, thereby improving financial viability.

Indirect API-fication

• Indirect API extraction depends on potential endpoints in the legacy system and considers:

• Scale: The endpoints are within the legacy system, need to ascertain the scaling capability

• Protocol and message formats: Like other integration mechanisms, the protocol and message format impacts the API feasibility
• Data locks and volume: Parallel or asynchronous API calls should consider data locks and volume-related aspects
•  Security: The security contexts of the legacy system and the API system should be seamlessly interoperable
• Performance: The existing performance levels of legacy application should get compared to the required level in the new API system

• Legacy dependencies: There would be additional dependencies on the legacy system such as database clusters, application delivery routing (e.g.- Citrix), domains and user profiles, identities, COTS products and proprietary formats/licensing

• Synchronizing existing methods (process isolations): Depending on the architecture of the legacy application there may be synchronizing challenges – especially on transaction systems where processes are interdependent and the right mix of isolations need to be evaluated

• Fault isolation: In Indirect APIs, the faults and their context, may require marshalling across legacy and API systems


The methodology

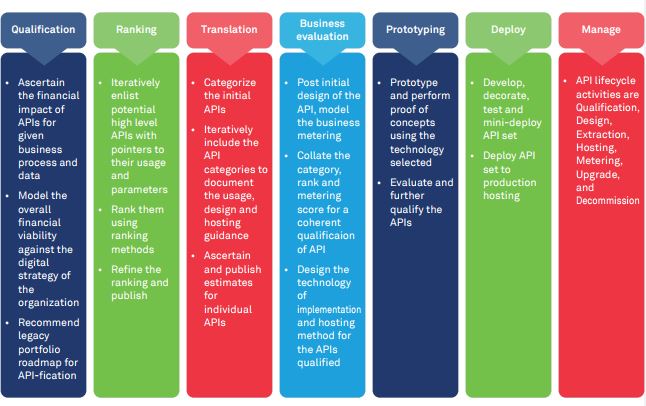

A methodology brings consistency in considering the actions, associated templates, algorithms and tools in performing the API roll-out. Figure 4 represents the methodology steps and details.

Towards transformation

A legacy application, with its dependencies and complexities, needs different evaluations to extract APIs out of it. There are direct or indirect ways of creating APIs and it is important to qualify (that includes rankings, financial viabilities and design qualifications) and a methodology to manage lifecycle activities of APIs. These aspects have to be optimally leveraged to transform a legacy application to the world of APIs.
