Smart Grid opens up a new genre of a prepaid metering system for the Utility, one which is a win-win proposition. A play around the backend systems rather than the meter itself ensures benefits realization not just for the utility but, also customers and the regulators, thus encompassing the entire value chain. Conventional prepaid metering system uses cards or reliable semi smart tokens or integrated keypad to recharge the prepaid meter. Prepaid meter accommodates the required hardware to recharge and determine the remaining credit on the customer account. The rate at which the customers are billed is also configured at the meter hardware. Hence field visit or meter exchange is required if the customers need to opt for alternate rate plans.
With Utilities embarking smart metering deployment, utilities do not require Smart Prepaid Meters to serve the prepaid customers. A Smart Meter with remote connect-disconnect switch can perform the function of both prepaid meter and credit meter. With powerful interval data available at Utility's disposal; Utility application(s) can calculate the credit left on the prepayment account and can initiate necessary actions like generating alerts, performing disconnect/reconnect etc. This article demonstrates how the smart meter and utility applications in conjunction can perform the function(s) of a prepaid meter and the benefits that utilities and customers would enjoy. This function is also extensible to provide meter independent services like charging the vehicles at the charging station using the same prepaid account.
There are 5.8 million prepayment meters in use in Great Britain, 14% of electricity consumers (3.6 million) and 10.4% of gas consumers (2.2 million) use prepayment. The number of prepayment meters installed has increased substantially over the past decade- including a 150% increase in gas prepayment . USA is slowly moving towards prepayment system, few of the utilities to be mentioned are Salt River Project, Nations Power Texas . Prepayment meters are also predominantly used in Australia (in Tasmania), The Northern Territory (Aboriginal communities) and Southern Australia. South Africa has the highest penetration of prepayment meters (for electricity) in the world, with 54 per cent of its 7.3 million electricity customers having prepayment meters (ABS Energy Research 2007:22).
Conventional Prepayment Metering System
Conventional meter reading system uses a smart card or a token that is read and stored within the meter. An electronic prepaid meter will act as a “bank”, as long as some credit is available inside the meter, services (supply of electricity or gas or water) will be made available to the customer. The level of credit inside the meter will be deducted according to the tariff as programmed for the respective customer. The prepaid meter issues warnings when the credit reaches a threshold or zero. Also the conventional prepaid meters have an emergency credit which could be used after the credit becomes zero. After the use of emergency credit, the service is disconnected. Customer needs to recharge the smart care or token and eventually the prepaid meter to avail the services again (reconnect).
Benefits of Conventional Prepayment System are:
Benefits to End Customers
- Preplan the budget required for paying utility bills.
- No additional charges are imposed on the customer upon reconnect.
- Customers don't need to pay security deposit to avail the services.
- Improved customer service with the control left to the customer.
- No problems of unsettled bills.
Benefits to Utility
- Reduction in collection of customer's debt.
- Reduced paper work as the customers are not billed on a regular basis.
- Enhances in reduction of customer energy consumption.
- Reduced financial risks - Enhances utility to receive payments ahead of the energy consumptions.
- Improved operational efficiencies - Reduced cost of meter reading.
- Enhances call center efficiency – Reduced customer complaints (Example: High bill, Outbound calls from IVR etc).
Disadvantages of Conventional Prepayment System are:
- Additional hardware cost and maintenance cost.
- Potential Safety issues- Appliances/systems can be switched on when the service has been terminated. When the prepaid system is being recharged, it could cause potential safety issues.
- Increased surcharges charged to the customer to finance and maintain the prepaid meters.
- Customers cannot choose dynamic rate plans like Time of Use pricing (TOU), Critical Peak Pricing (CPP) or Real Time pricing. This requires field visit to configure such rate plans on the meter.
- Credit is only available from certain outlets. Also, it is required that the customer is at the premise to recharge the meter.
- Best energy deals on the market aren't available to prepayment customers.
- The meter may continue to collect fixed charges even when there is no credit on the meter, depending on which type of meter it is.
- It is more expensive than Direct Debit and Online payment methods.
- If the customer is repaying a debt through meter, customer may not be able to switch to another supplier (UK market scenario).
- Inconvenience- will often require trips to a shop to 'Top Up' keys and smartcards.
Prepayment System in the World of Smart Grid

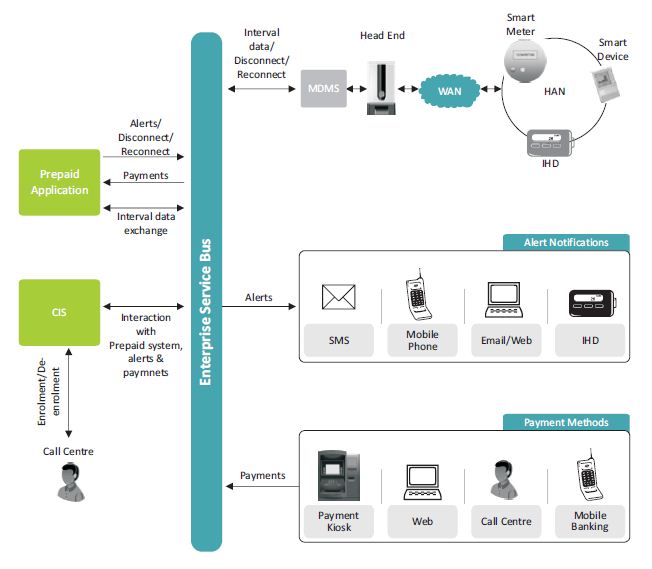

With Smart Grid and Advanced Metering Infrastructure (AMI) in place, Utilities do not require prepaid meters to serve the prepaid customers. A simple smart meter with remote connect-disconnect switch can perform the function of prepaid meter. With powerful interval data available at Utility's disposal, Utility Application(s) can calculate the credit left on the prepayment account and can initiate necessary actions like generating alerts, performing disconnect/reconnect etc. With the below architecture in place, many of the disadvantages of the existing prepayment metering system would be addressed.
