Industry outlook towards Test Engineering
SOC Manufacturing and supply chain involve multiple phases from Architecture, design, verification, physical design & fabrication to testing and productization. In the current environment, test engineering (which is a critical component of engineeringNXT) considerations are getting more stringent by the day as compared to the traditional design phase. This is glaring for a few industries, most notably automotive and medical sciences. For example, Pacemakers need very stringent testing procedures1. A renowned automotive company based in the US, renowned in the driverless car space, has been part of accidents that have proven fatal. There are several other examples that can be attributed to defective design or manufacturing issues and many such faults can be identified during the post-manufacturing silicon tests that every chip goes through, if test architecture and implementation is up to the mark. Hence, the best approach is to have correct test architecture and get it implemented in the Pre-silicon phase for IPs, which will have multiplicative benefits across all designs. Correct test methodology will ensure that yield is not adversely impacted due to a faulty test program. Apart from stringent testing, one would also want to ensure good components are not rejected, thereby impacting the bottom line.
Industry-specific safety standards and impact on Test Engineering
Governing bodies and standards are updated every year to ensure devices adhere to error tolerance levels. ISO26262 is the international standard for functional safety of electrical/electronic systems in the automotive industry defined by ISO in 2011. The standard also talks about ASIL (Automotive Safety Integrity Level) which classifies the inherent safety risk in any automotive ECU/system2. Architects define the different DFT & test architectures based on different ASIL grades. Similarly, IEC 60601 is an umbrella of technical standards for the safety and performance of medical electrical equipment, published by the International Electro-technical Commission3.
The tolerance of error in devices from these industries is nearly zero and is being defined not in Defective parts per Million (DPPM) but in Defective Parts per Billion (DPPB) today. That means, now, we cannot accept even a handful of defective parts in a one million sample, which represents a paradigm shift in the testing world. Higher test quality requirements imply the need for higher test coverage, and consequently, higher pattern count. In addition, beyond 97% test coverage, the test coverage to pattern count graph flattens out and demands more patterns to cover the remaining faults. For instance, for a typical digital chip, the pattern count may grow from 7K patterns to 50K if we add all these extra patterns on top of normal stuck at patterns.
The upward trending number of test patterns also implies that the pattern depth could exceed tester memory capacity. This would, in turn, mean that the tester needs to be loaded beyond one cycle to run all the patterns i.e. multi loading or change of tester itself to one supporting higher memory.
All this, basically, leads to ever-increasing test program cost consequently hitting the bottom line. The devices being tested go through wafer-level testing followed by packaged device testing to characterization at system level today. This leads to increased time to market as well which, in the current era of cutthroat competition, has repercussions on the market share.
VLSI industry changes adding to Test Engineering costs
FinFET, 3D chip stacking, lower technology nodes like 7nm are all trends in the technology industry with which, repeatedly, researchers have tried to make chips more compact and prudent. These trends have each posed newer challenges for test engineering. At lower technology nodes, the defects introduced by the fabrication process increase and so test engineering is expected to become more complex.
Test engineers address the challenges posed by each of these trends. For instance, for lower technology nodes, the defects increase and the yield challenges worsen. Advanced fault models like Cell-aware try to address the problems posed by lower technology nodes but in turn introduce the baggage of high pattern count.

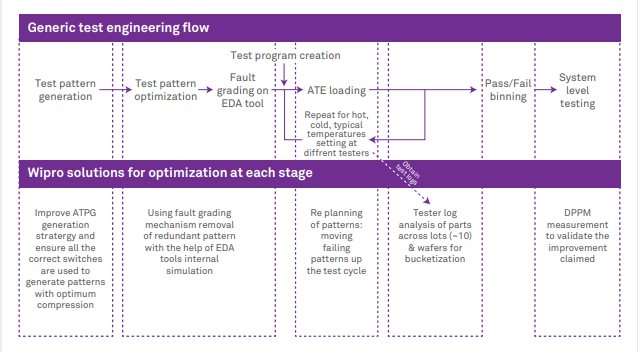

One way to achieve test program optimization is bringing together test engineering expertise and DFT depth. The idea presented herein is that right from the pre-silicon architecture phase, DFT design correctness will ensure that there is optimum controllability and observability in the design. This should be done at the IP, ASIC and the SoC level. The addition and verification of DFT feature at a source level, i.e. IP level, is advocated in this article, so that this will never be neglected at the SOC level. We propose to have each IP fully testable in itself. Cross-domain expertise including VLSI domain and areas like AI/ML, data analytics, cloud infrastructure services, etc. give us a position to come up with a solution which has elements of analytics working as an enabling tool led by Test engineering expertise to define rules that lead to overall test cost reduction. Our approach results in bucketization, re-sequencing of patterns and moving of patterns up the test cycle (packaged device to wafer level) across various process corners. To cover process corners, the recommendation is creating optimization rule on devices across various lots, hence wafers. Please refer to the figure below for details on the methodology suggested in this article.
